DeSite SLG 108VFRB
Hourly Production 30 to 60 yards per hour.
MSRP
$15,500 USD
$19,900 CAD
DESIGNED FOR FULL SIZED EQUIPMENT
Wheel Loaders
Backhoes
Compact Wheel Loaders
Skidsteers
Excavators
Compact Excavators
GENERAL DESCRIPTION
The SLG 108VFRB is our largest screener model, specifically designed for use with full-size equipment. With an impressive hourly production capacity of 30 to 60 yards per hour, this screener is built to handle large-scale operations with ease. It is compatible with buckets ranging from 84 to 108 inches, providing flexibility for various equipment sizes. Additionally, the SLG 108VFRB offers over 10 different mesh options, allowing you to efficiently process a wide range of materials to meet your specific needs.
YOU CAN SCREEN
- Sand
- Topsoil
- Compost
- Wood Mulch
- Pea Stone
- Septic Rock
- Road Gravel
- Landscape Stone
- Ground Asphalt
- Crushed Concrete
- Erosion Control Rock
- Traction Sand

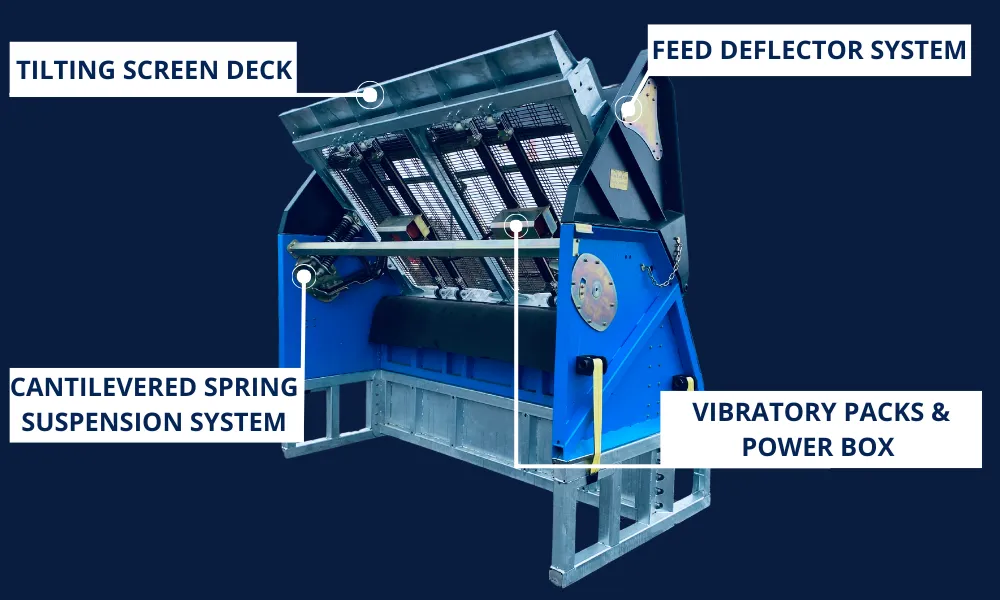

SCREENER FEATURES
FEED DEFLECTOR SYSTEM
SEE PHOTOS
- Only DeSite recognized the need for a Feed Deflection System to optimize material flow. DeSite SLG screeners are uniquely equipped with a deflector that funnels material towards the top of the screen deck, initiating the screening process efficiently.
- By directing material flow to the top of the screen deck, this system ensures maximum production and efficiency. The SLG 108's deflector is designed with flexibility in mind, allowing it to open and close as needed to manage oversized materials effectively. Additionally, the 108's feed deflector fits into our quick disconnect lugs, making it easy to remove when necessary.
- Optimized Material Flow: Directs material towards the top of the screen deck, ensuring efficient and effective screening.
- Maximized Production: Enhances production capacity by starting the screening process at the optimal point on the deck.
- Flexible Operation: The deflector can open and close as needed, allowing for easy handling of oversized materials.
- Quick Disconnect Capability: Easily removable thanks to the quick disconnect lugs, providing flexibility in operation and maintenance.
- Enhanced Efficiency: Streamlines the screening process, reducing downtime and improving overall operational efficiency.
TILTING SCREEN DECK
SEE PHOTOS
- The ability to adjust the screen deck slope while screening is a key factor in increasing efficiency and boosting hourly production. The SLG 108VFRB offers adjustable positions to accommodate different materials and moisture levels, ensuring optimal performance in all soil conditions—whether wet, dry, sandy, rocky, or even frozen.
- To slow down material flow, the operator simply needs to flatten the deck slope using the bucket while feeding the screener. For high moisture materials, keeping the screener at a steeper slope allows material to travel faster across the deck. This high-efficiency feature is unique to DeSite screening machines, setting them apart in the industry.
- Enhanced Efficiency: Adjusting the screen deck slope improves screening efficiency, resulting in higher hourly production.
- Versatile Performance: The SLG 108VFRB adapts to various materials and moisture levels, ensuring consistent performance in all soil conditions, including wet, dry, sandy, rocky, and frozen soils.
- Controlled Material Flow: Operators can easily control material flow by adjusting the deck slope, slowing it down for better screening of certain materials.
- Optimized for High Moisture: A steeper slope allows for faster material travel, making it ideal for screening high moisture materials.
- Unique to DeSite: This high-efficiency feature is exclusive to DeSite screening machines, offering a distinct advantage in the market.
CANTILEVERED SPRING SUSPENSION SYSTEM
SEE PHOTOS
- The Cantilevered Spring Suspension System is designed to be virtually maintenance-free, requiring attention to just two grease points per shift. This advanced system utilizes leaf springs, Z springs, and UHMW bushings to keep the suspension tubes and coils separate, eliminating the need for lubrication. With less time spent on maintenance, you can focus more on screening, leading to increased production and profitability.
- This innovative suspension system allows operators to adjust the deck slope to perfectly match the material being screened. The cantilevered design ensures that when pressure is applied to the top of the screen deck, the bottom moves in the opposite direction, enhancing the screening process. The system's simple yet durable construction provides flexibility and reliability in operation.
- Minimal Maintenance: Requires servicing of only two grease points per shift, reducing downtime and increasing productivity.
- No Lubrication Needed: Utilizes leaf springs, Z springs, and UHMW bushings to separate suspension components, eliminating the need for lubrication.
- Increased Production: Less time spent on maintenance means more time available for screening, boosting overall production and profitability.
- Adjustable Deck Slope: Operators have the flexibility to adjust the deck slope to match the material being screened, optimizing the screening process.
- Efficient Cantilevered Design: The system's cantilevered structure ensures that when the top of the screen deck is pushed down, the bottom moves in the opposite direction, enhancing screening efficiency.
- Durable Construction: Built for reliability and long-term use, offering a simple yet robust solution for various screening needs.
VIBRATORY PACKS & POWER BOX
SEE PHOTOS
- The SLG 108VFRB is equipped with dual eccentric vibratory packs, each motor operating at 3600 RPM and generating approximately 760 lbs of force. This powerful setup ensures efficient material screening. The starter box includes two capacitors that store energy to facilitate smooth motor startup, while at operating speed, each vibratory pack only draws about 5 amps, making the system energy-efficient.
- Our DeSite eccentric vibratory packs are designed for durability, featuring oil ring seals that keep dust and moisture out, ensuring long-lasting performance. Additionally, the electric components are encased in rubber to absorb vibrations from the eccentrics, protecting the system and enhancing reliability.
- Powerful Performance: Each vibratory pack operates at 3600 RPM, generating about 760 lbs of force, ensuring efficient material screening.
- Energy-Efficient Operation: The vibratory packs draw only about 5 amps at operating speed, making the system both powerful and energy-efficient.
- Smooth Startup: Equipped with two starting capacitors in the starter box, the system ensures reliable and smooth motor startups.
- Dust and Moisture Protection: The vibratory packs are oil ring sealed to keep dust and moisture out, ensuring long-lasting durability.
- Vibration Absorption: Electric components are encased in rubber to absorb vibrations from the eccentrics, enhancing the system’s reliability and protecting against wear and tear.
SLG 108VFRB
MACHINE SPECIFICATIONS
| MACHINE DIMENSIONS | |
|---|---|
| Machine Width | 126 inches |
| Machine Height | 122 inches |
| Machine Depth | 72 inches |
| SCREEN DECK | |
| Screen Deck Width | 120 inches |
| Screen Deck Length | 72 inches |
| Screen Deck Surface area | 58 sq/ft |
| Screen Deck Tilt Angle | 45 to 30 Degrees |
| VIBRATORY SYSTEM | |
| Vibratory Style System | Dual Eccentric Armature |
| Eccentric Rotation Speed | 3600 rpm |
| Amperage Draw | 10 each on start up with 5 Amps Amp draw per motor at 3600rpm |
| Eccentric Force rotation | 760 lbs per/revolution |
| ELECTRICAL POWER SUPPLY | |
| North America | 110 Volt ( 60 Hertz ) |
| Europe | 220 Volt ( 50 Hertz ) |
| South America | 110 Volt ( 60 Hertz ) |
| WEIGHT | |
| Total Weight with riser box | 5500 lbs |
| Total Weight without riser box | 4300 lbs |
DeSite WARRANTY POLICY
3 year structural warranty.
1 year electrical components warranty.
read more
We provide all parts at no cost to the customer during the warranty period.
Customer is responsible for installing the part and covering the shipping cost.
DeSite Screeners are vibratory screeners.
Customers are responsible for inspection before and after use.
We do not warrant against abuse or lack of maintenance.
DESITE WARRANTY POLICY
BUY WITH CONFIDENCE
SCREENER ACCESSORIES
BUCKET TRANSPORT LUGS
- The SLG 108VF screener can be easily moved around the job site using just the bucket of your machine, thanks to our SLG 108 Bucket Transport Lugs. This system allows you to keep your machine as close as possible to the material being screened, reducing cycle times and increasing the number of buckets processed per hour, which leads to higher hourly output.
- Our fork and bucket lug transport system eliminates the need for wheels, axles, hitches, and wiring, reducing maintenance and simplifying the transport process.
- Easy Onsite Mobility: Move the SLG 108VF screener around the job site using just the bucket of your machine, enhancing convenience and flexibility.
- Increased Efficiency: Keeping your machine close to the material being screened reduces cycle times, allowing for more buckets per hour and higher overall output.
- Simplified Transport: The fork and bucket lug system eliminates the need for wheels, axles, hitches, and wiring, reducing the complexity of transport.
- Low Maintenance: With no wheels, axles, or wiring to maintain, the system offers a maintenance-free solution for moving the screener around the site.
BUCKET TRANSPORT LUGS
IN STOCK
$375 USD
$506.25 CAD
$506.25 CAD
RISER BOX
- The Riser Box features a galvanized finish, making it highly resistant to corrosion. This is especially important since the riser often sits covered in soil and rock when the screener is not in use. The galvanized finish ensures the metal is well-protected from these harsh elements.
- When the screener is elevated on the Riser Box, it increases the storage capacity for screened material to about 5 yards on each side, enhancing productivity and efficiency.
- The Riser Box itself weighs 1200 lbs, providing a sturdy and durable base for your screener.
- Corrosion Resistance: The galvanized finish protects the Riser Box from corrosion, ensuring durability even when covered in soil and rock.
- Increased Storage Capacity: Elevating the screener on the Riser Box allows for up to 5 yards of material storage on each side, enhancing productivity.
- Heavy-Duty Construction: Weighing in at 1200 lbs, the Riser Box provides a sturdy and reliable base for your screener.
- Enhanced Efficiency:By raising the screener, the Riser Box improves overall workflow, allowing for more efficient material handling and processing.
RISER BOX
IN STOCK
$2,200 USD
$4,900 CAD
$4,900 CAD
SLG 108VFRB PARTS
We have parts for your SLG and PVG screeners.
ABOUT MESH
Square
- We offer a wide range of mesh that are quick and easily changed.The ability to install large and small high quality mesh makes DeSite SLG Screeners a time saver and money maker. We offer both square and elongated mesh pattern in a double lock crimp weave. Our double lock weave puts two crimps in each wire as they intersect, This creates a strong weave and a stronger, more stable mesh.
Elongated
- Our elongated pattern mesh is what we call a triple chute weave where a group of three wires intersect the main with wires. A space of four inches has full unobstructed opening before the next three wires intersect the mesh again. Our elongated pattern meshes are designed to handle higher moisture material when screening is more challenging. Hourly production are always considerably higher when elongated pattern mesh in in use.

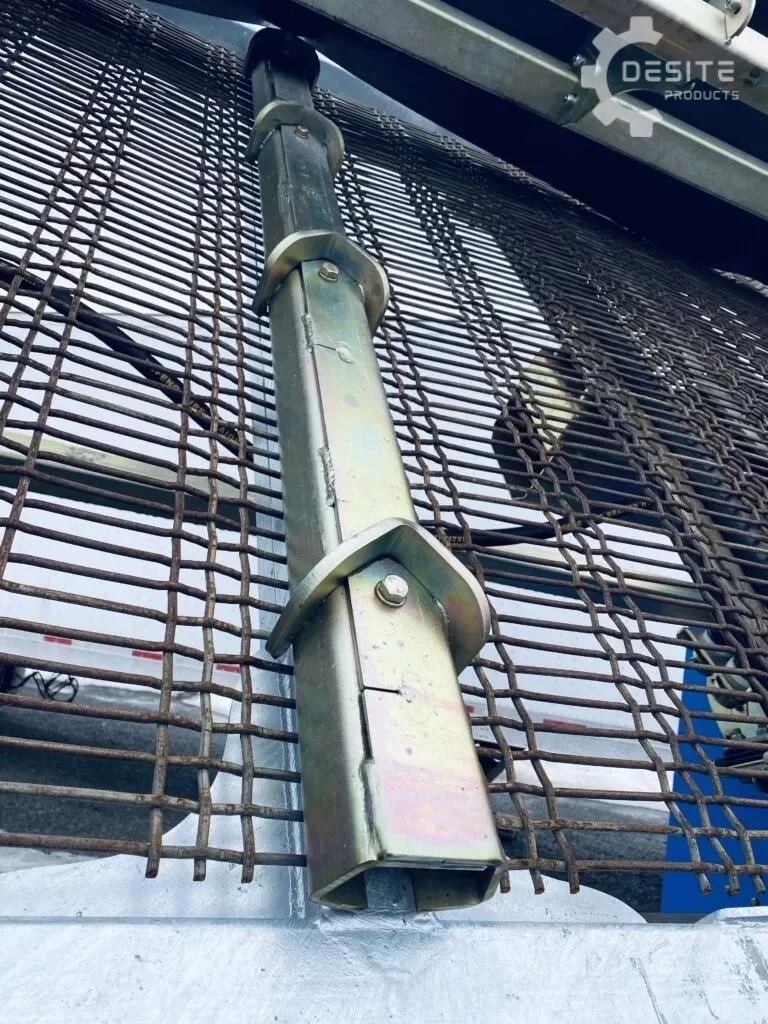

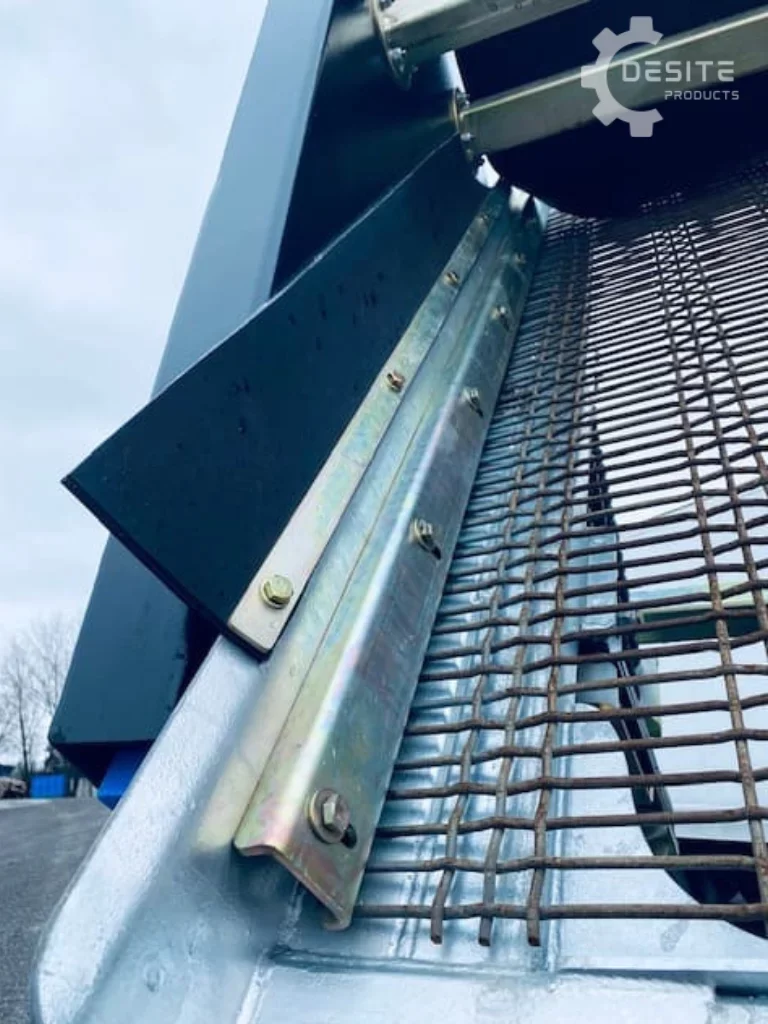

QUICK CHANGE MESH SYSTEM
- The Quick Change Mesh System allows you to swiftly swap out mesh sizes, enabling you to offer a variety of aggregate sizes and topsoil qualities tailored to your customers' needs. Our side-tensioned, crowned screen decks provide easy access to the mesh clamp bolts, making it simple to switch to an alternate mesh size for producing different products. We offer a wide range of mesh sizes, from small openings that produce a 1/16 inch product to large 4-inch square meshes for handling heavy rock.
- Versatile Product Offering: Easily change mesh sizes to produce varying aggregate sizes and topsoil qualities, meeting diverse customer needs.
- Efficient Mesh Swapping: Side-tensioned, crowned screen decks provide easy access to mesh clamp bolts, allowing for quick and hassle-free mesh changes.
- Wide Range of Mesh Sizes: Options range from small openings that produce a 1/16 inch product to large 4-inch square meshes for heavy rock, accommodating a variety of screening applications.
- Increased Productivity: Quickly adjusting mesh sizes enables you to efficiently produce different products, maximizing productivity and profitability.
Square
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 5/32" x 5/32" | Square | 1/16" |
| 1/4" x 1/4" | Square | 1/8" |
| 3/8" x 3/8" | Square | 1/4" |
| 1/2" x 1/2" | Square | 3/8" |
| 1" x 1" | Square | 3/4" |
| 2" x 2" | Square | 1-1/2" |
| 3" x 3" | Square | 2" |
| 4" x 4" | Square | 3" |
Elongated
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 3/8" x 4" | Elongated | 1/4" to 5/16" |
| 1/2" x 4" | Elongated | 3/8" to 7/16" |
| 3/4" x 4" | Elongated | 1/2" to 9/16" |
| 1" x 4" | Elongated | 3/4" to 7/8" |
Topsoil and Triple Mix
- Topsoil is in demand and profitable. Depending upon the customer and their needs some want it very fine while other are more price conscious and want commercial grade topsoil.
| Mesh Size | Product Size |
|---|---|
| 1/8 x 4” elongated mesh | 1/16 minus product |
| 1/4 x 1/4 square mesh | 1/8 minus product |
| 1/4 x 4” elongated mesh | 1/8 minus product |
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| Mesh Size | Product Size |
|---|---|
| 1/4 x 4” elongated mesh | 1/8 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| 1/2 x 4” elongated mesh | 3/8 minus product |
Compost
- Compost and either be a top dressing product used fertilizer / soil builder or can be used to create a triple mix with sand and topsoil.
| Mesh Size | Product Size |
|---|---|
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 3/4 minus product |
Wood Mulch
- Wood mulch is a light product that travels over the screen deck differently that a soil or aggregate product. It is recommended to run a bit bigger mesh. Often people will screen out the fines and mix it into the topsoil for slow release decomposition. It is a great way to recycle the wood fines.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 1/4 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 1/2 minus product |
| 2” x 2” square mesh | 1-1/4 minus product |
| 3” x 3” square mesh | 2” minus product |
| 4” x 4” square mesh | 3” minus product |
Commercial Grade or Triple Mix Topsoil
- This is the mixture of topsoil / sand / compost to create a product that normally commands a premium price.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 1/4 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 1/2 minus product |
| 2” x 2” square mesh | 1-1/4 minus product |
| 3” x 3” square mesh | 2” minus product |
| 4” x 4” square mesh | 3” minus product |
Aggregate Products
Pea Stone
- Often used in play grounds or for decoration. Pea stone usual commands a premium price asmost aggregate gets crushed and too sharp for pea stone.
| Mesh Size | Product Size |
|---|---|
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 1/2 x 4” elongated mesh | 3/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
Decorative Stone
- In some regions water is restricted for yard use so decorative rock is the manageable and cost effective solution.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Top Coarse Gravel
- Finer road gravel works great for capping roadways.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
Septic Stone
- Many regions still use stone in their septic fields for the evaporation process.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
Base Rock Gravel
- The ability to separate out the smaller gravel make for a much better and more stable road base. I also then allows for the fines to be spread on top of the base coarse for a gradable surface.
| Mesh Size | Product Size |
|---|---|
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Ground Asphalt
- The screening and recycling of ground asphalt has become popular with the material coming in off repaving project. Once screened many people use the fine material on driveways and the bigger material on roads and lots with heavier traffic.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
Crushed Concrete
- Screened crushed concrete makes great base material when building roads.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Erosion Control Rock
- Water flow can do a lot of damage through erosion. Erosion control rock works great to stabilize slopes or around culverts to reduce erosion during heavy rains.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 4” elongated mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
