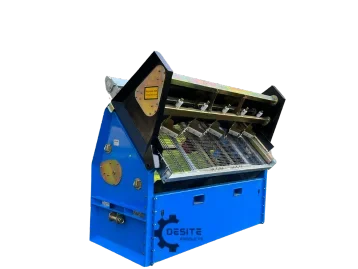

DeSite SLG 78VFRB
With flow control
Hourly Production 15 to 40 yards per hour
MSRP
$9,750 USD
$10,900 CAD
DESIGNED FOR MIDSIZE EQUIPMENT

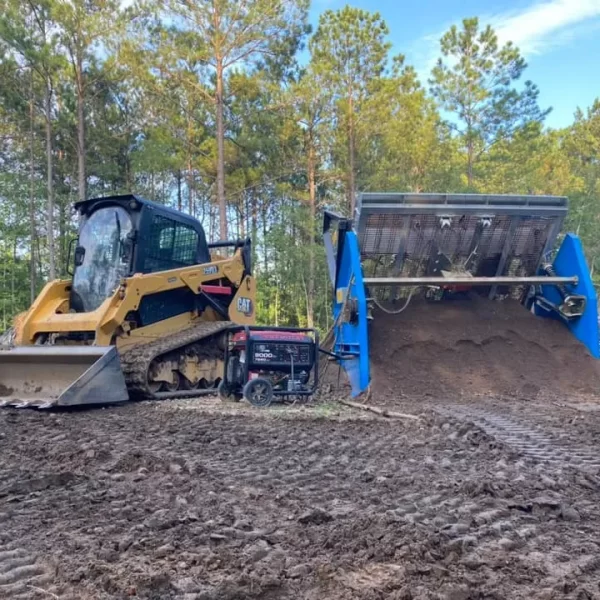

Skid Steers
Bucket tractor

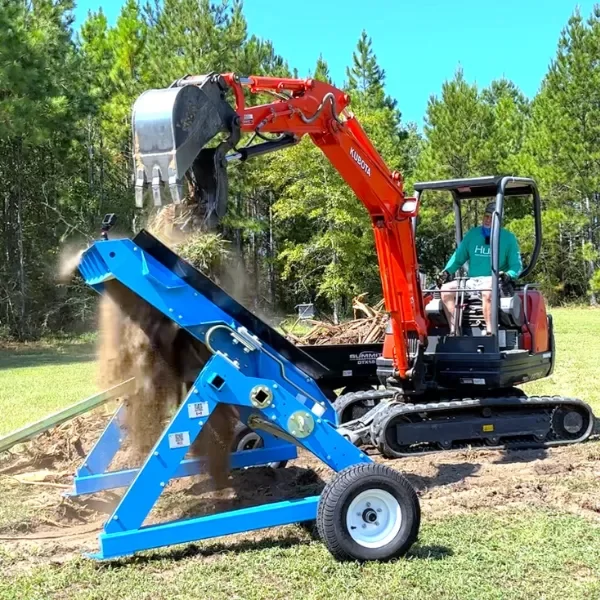

Mid size excavators
Compact loaders
GENERAL DESCRIPTION
The 78VFRB – W is our model specifically designed for midsize equipment, offering an hourly production rate of 15 to 40 yards per hour. It’s well-suited for buckets ranging from 72 to 82 inches and comes with over 10 mesh options available to accommodate various types of materials.
YOU CAN SCREEN
- Sand
- Topsoil
- Compost
- Wood Mulch
- Pea Stone
- Septic Rock
- Road Gravel
- Landscape Stone
- Ground Asphalt
- Crushed Concrete
- Erosion Control Rock
- Traction Sand
SCREENER FEATURES
FEED DEFLECTION SYSTEM + FLOW CONTROL WINGS
SEE PHOTOS
- The FEED DEFLECTION SYSTEM combined with FLOW CONTROL wings is designed to ensure more uniform screening of materials in process. These systems enable material to enter the screener evenly, optimizing the efficiency of the operation. The FLOW CONTROL wings, unique and exclusive to the 78VFRB - W model, play a crucial role in controlling the flow of material, allowing larger particles like stones and other objects to pass through smoothly. These wings are adjustable, accommodating different material sizes, and then returning to their original position, ensuring consistent performance.
- Adjustable Wings: The system allows for adjustment depending on the material being screened, ensuring optimal performance for various material types.
- Uniform Material Flow: The FEED DEFLECTION SYSTEM ensures that material enters the screener evenly, leading to a more consistent screening process.
- Exclusive Design: The FLOW CONTROL wings are unique to the 78VFRB - W model, providing specialized functionality that enhances the screening process.
- Handles Larger Particles: The system effectively manages larger particles like stones, allowing them to pass through without disrupting the screening process.
- Self-Adjusting Mechanism: The FLOW CONTROL wings can accommodate different material sizes and then return to their original position, maintaining smooth operation.
- Enhanced Screening Efficiency: By controlling the flow of material more precisely, the system reduces clogging and ensures a more efficient screening process.
TILTING SCREEN DECK
SEE PHOTOS
- The TILTING SCREEN DECK is a unique and exclusive system to DeSite Screeners. We understand that depending on the moisture level of a material, it can be a real headache, as high moisture content can slow down material flow or even cause it to stick to the mesh, clogging the screener. That's why we designed a system that allows direct contact between the bucket of your equipment and the screener. This feature enables you to adjust the tilting screen deck when material adheres to the mesh, allowing it to flow smoothly and continue the screening process effectively. The deck's slope ranges from 30 to 45 degrees, giving you the flexibility to adjust it to your convenience based on the material being processed and its moisture level.
- Exclusive DeSite Technology: The TILTING SCREEN DECK is a unique and proprietary system exclusive to DeSite Screeners, offering advanced functionality.
- Adjustable Slope: The deck's adjustable slope ranges from 30 to 45 degrees, allowing you to customize the angle based on the material's moisture level and type, optimizing screening efficiency.
- Enhanced Material Flow: The system enables direct contact between the bucket of your equipment and the screener, helping to dislodge material that sticks to the mesh and ensuring a smooth screening process.
- Reduces Clogging: By allowing adjustments to the screen deck, the system effectively reduces clogging caused by high moisture content, minimizing downtime.
- Increased Flexibility: The ability to tilt the screen deck provides greater control over material flow, making it easier to manage challenging materials and maintain consistent screening performance.
- Improved Efficiency: The tilting mechanism allows for real-time adjustments, ensuring that material flows smoothly, even under varying conditions, leading to more efficient operations.
POWER BOX
SEE PHOTOS
- Starting with a durable 25ft, 10-gauge electrical cord, our system connects securely to a watertight power box designed for reliability. Inside the power box, a bus bar and starting capacitor store the necessary energy to power the vibratory pack, which rapidly spins the dual eccentric armature up to 3600 RPM, generating a centrifugal force of 560 ft/lbs. This force is then effectively transferred through the vibratory motor mounting plate, vertical tubes, and across our crowned and side-tensioned screen mesh. The screen deck is specifically engineered to withstand the harmonic vibrations essential for keeping material moving smoothly across the surface.
- The SLG 78VF can be powered by standard 120-volt electricity, provided the distance from the power source is under 75ft and a heavy-duty 10-gauge electrical cord is used, ensuring flexibility and convenience in various operational settings.
- Heavy-Duty Electrical Connection: Our system begins with a robust 25ft, 10-gauge electrical cord, designed to connect securely to our watertight power box.
- Efficient Power Management: Inside the power box, a bus bar and starting capacitor are housed, storing the necessary energy to initiate the vibratory pack's rotation.
- High-Performance Vibratory Pack: The vibratory pack rapidly accelerates the dual eccentric armature to 3600 RPM, delivering a powerful centrifugal force of 560 ft/lbs.
- Effective Vibration Transfer: Once at full speed, the vibratory pack transfers its energy through the motor mounting plate, vertical tubes, and across our specially designed crowned and side-tensioned screen mesh.
- Engineered for Durability: The screen deck is meticulously engineered to withstand the harmonic vibrations required to maintain continuous material movement across the deck.
- Versatile Power Options: The SLG 78VF can be operated using standard 120-volt power, provided the distance from the power source is under 75ft and a heavy-duty 10-gauge electrical cord is used.
CANTILEVERED SPRING SUSPENSION SYSTEM
SEE PHOTOS
- The CANTILEVERED SPRING SUSPENSION SYSTEM is a crucial component of the Tilting Screen Deck. This system allows you to move the screen deck using your bucket, creating an action-reaction mechanism that ensures optimal material flow, even when high moisture levels cause materials to become stuck. This design guarantees a consistently efficient screening process. Additionally, the system requires minimal maintenance and is built for long-lasting durability.
- Crucial Component: The Cantilevered Spring Suspension System is an essential part of the Tilting Screen Deck, enabling efficient operation.
- Action-Reaction Mechanism: This system allows you to move the screen deck with your bucket, creating an action-reaction effect that helps dislodge materials that become stuck due to moisture.
- Ensures Optimal Flow: The design ensures that even when materials are wet and sticky, they can still flow smoothly, maintaining an optimal screening process.
- Minimal Maintenance: The system is designed for minimal upkeep, reducing downtime and maintenance costs.
- Durable Design: Built for longevity, the system is engineered to withstand rigorous use and ensure lasting performance.
SLG 78VFRB
MACHINE SPECIFICATIONS
| MACHINE DIMENSIONS | |
|---|---|
| Machine Width | 98 inches |
| Machine Height | 104 inches |
| Machine Depth | 72 inches |
| SCREEN DECK | |
| Screen Deck Width | 80 inches |
| Screen Deck Length | 52 inches |
| Screen Deck Surface area | 29 sq/ft |
| Screen Deck Tilt Angle | 45 to 30 Degrees |
| VIBRATORY SYSTEM | |
| Vibratory Style System | Dual Eccentric Armature |
| Eccentric Rotation Speed | 3600 rpm |
| Amperage Draw | 10 each on start up with 5 Amps Amp draw per motor at 3600rpm |
| Eccentric Force rotation | 760 lbs per/revolution |
| ELECTRICAL POWER SUPPLY | |
| North America | 110 Volt ( 60 Hertz ) |
| Europe | 220 Volt ( 50 Hertz ) |
| South America | 110 Volt ( 60 Hertz ) |
| WEIGHT | |
| Total Weight with riser box | 2500 lbs |
| Total Weight without riser box | 2000 lbs |
DeSite WARRANTY POLICY
3 year structural warranty.
1 year electrical components warranty.
read more
We provide all parts at no cost to the customer during the warranty period.
Customer is responsible for installing the part and covering the shipping cost.
DeSite Screeners are vibratory screeners.
Customers are responsible for inspection before and after use.
We do not warrant against abuse or lack of maintenance.
DESITE WARRANTY POLICY
BUY WITH CONFIDENCE
SCREENER ACCESSORIES
BUCKET TRANSPORT LUGS
- The BUCKET TRANSPORT LUGS is a fast transport system that doesn't require a trailer or wheels. Simply attach the bucket transport lugs—a process that takes just 2 minutes—grab your bucket, and lift the screener. It's a very straightforward process. We understand that some screening locations can be difficult to access, which is why we designed our screeners with portability in mind.
- Quick Transport System: The Bucket Transport Lugs provide a fast and efficient way to move your screener without the need for a trailer or wheels.
- Easy Attachment: Attaching the bucket transport lugs is a simple process that takes just 2 minutes.
- Effortless Lifting: Once attached, you can easily lift the screener with your bucket, making the transport process straightforward.
- Designed for Difficult Locations: The system is ideal for use in screening locations that are challenging to access, enhancing the portability of our screeners.
- Portability Focused: Our screeners are designed with portability in mind, ensuring you can easily move them wherever needed.
BUCKET TRANSPORT LUGS
IN STOCK
$275 USD
$371.25 CAD
$371.25 CAD
RISER BOX
- The Riser Box increases storage capacity on both sides of the screener, allowing you to screen for longer periods without needing to collect your finished product. Additionally, it provides extra height, accommodating larger equipment that can be used with this model, making it more versatile for different operational needs.
- Increased Storage Capacity: The Riser Box allows for more storage on both sides of the screener, enabling longer screening sessions without needing to collect finished materials.
- Extended Screening Time: With the added storage, you can screen more material before having to pause to collect your product.
- Additional Height: The Riser Box provides extra height, making it compatible with larger equipment, enhancing the versatility of the screener.
- Versatile Usage: Ideal for use with equipment of varying sizes, the Riser Box adapts to different operational needs.
BUCKET TRANSPORT LUGS
IN STOCK
$1,300 USD
$1,950 CAD
$1,950 CAD
SLG 78VFRB PARTS
We have parts for your SLG and PVG screeners.
ABOUT MESH
Square
- We offer a wide range of mesh that are quick and easily changed.The ability to install large and small high quality mesh makes DeSite SLG Screeners a time saver and money maker. We offer both square and elongated mesh pattern in a double lock crimp weave. Our double lock weave puts two crimps in each wire as they intersect, This creates a strong weave and a stronger, more stable mesh.
Elongated
- Our elongated pattern mesh is what we call a triple chute weave where a group of three wires intersect the main with wires. A space of four inches has full unobstructed opening before the next three wires intersect the mesh again. Our elongated pattern meshes are designed to handle higher moisture material when screening is more challenging. Hourly production are always considerably higher when elongated pattern mesh in in use.
QUICK CHANGE MESH SYSTEM
- One person can access and easily remove the mesh clamp bolts on each side and middle of the screener. At the bottom of the screen deck we have laser cut the plate to hold the mesh in place until you are ready to remove it. After removing the mesh simply install the new mesh and reinstall and tighten the bolts on each side.
Square
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 5/32" x 5/32" | Square | 1/16" |
| 1/4" x 1/4" | Square | 1/8" |
| 3/8" x 3/8" | Square | 1/4" |
| 1/2" x 1/2" | Square | 3/8" |
| 1" x 1" | Square | 3/4" |
| 2" x 2" | Square | 1-1/2" |
| 3" x 3" | Square | 2" |
| 4" x 4" | Square | 3" |
Elongated
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 3/8" x 4" | Elongated | 1/4" to 5/16" |
| 1/2" x 4" | Elongated | 3/8" to 7/16" |
| 3/4" x 4" | Elongated | 1/2" to 9/16" |
| 1" x 4" | Elongated | 3/4" to 7/8" |
Topsoil and Triple Mix
- Topsoil is in demand and profitable. Depending upon the customer and their needs some want it very fine while other are more price conscious and want commercial grade topsoil.
| Mesh Size | Product Size |
|---|---|
| 1/8 x 4” elongated mesh | 1/16 minus product |
| 1/4 x 1/4 square mesh | 1/8 minus product |
| 1/4 x 4” elongated mesh | 1/8 minus product |
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| Mesh Size | Product Size |
|---|---|
| 1/4 x 4” elongated mesh | 1/8 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| 1/2 x 4” elongated mesh | 3/8 minus product |
Compost
- Compost and either be a top dressing product used fertilizer / soil builder or can be used to create a triple mix with sand and topsoil.
| Mesh Size | Product Size |
|---|---|
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 3/8 x 4” elongated mesh | 1/4 minus product |
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 3/4 minus product |
Wood Mulch
- Wood mulch is a light product that travels over the screen deck differently that a soil or aggregate product. It is recommended to run a bit bigger mesh. Often people will screen out the fines and mix it into the topsoil for slow release decomposition. It is a great way to recycle the wood fines.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 1/4 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 1/2 minus product |
| 2” x 2” square mesh | 1-1/4 minus product |
| 3” x 3” square mesh | 2” minus product |
| 4” x 4” square mesh | 3” minus product |
Commercial Grade or Triple Mix Topsoil
- This is the mixture of topsoil / sand / compost to create a product that normally commands a premium price.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 1/4 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 1/2 minus product |
| 2” x 2” square mesh | 1-1/4 minus product |
| 3” x 3” square mesh | 2” minus product |
| 4” x 4” square mesh | 3” minus product |
Aggregate Products
Pea Stone
- Often used in play grounds or for decoration. Pea stone usual commands a premium price asmost aggregate gets crushed and too sharp for pea stone.
| Mesh Size | Product Size |
|---|---|
| 3/8 x 3/8 square mesh | 1/4 minus product |
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 1/2 x 4” elongated mesh | 3/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
Decorative Stone
- In some regions water is restricted for yard use so decorative rock is the manageable and cost effective solution.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Top Coarse Gravel
- Finer road gravel works great for capping roadways.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
Septic Stone
- Many regions still use stone in their septic fields for the evaporation process.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 1/2 square mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
Base Rock Gravel
- The ability to separate out the smaller gravel make for a much better and more stable road base. I also then allows for the fines to be spread on top of the base coarse for a gradable surface.
| Mesh Size | Product Size |
|---|---|
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Ground Asphalt
- The screening and recycling of ground asphalt has become popular with the material coming in off repaving project. Once screened many people use the fine material on driveways and the bigger material on roads and lots with heavier traffic.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
Crushed Concrete
- Screened crushed concrete makes great base material when building roads.
| Mesh Size | Product Size |
|---|---|
| 3/4 x 4” elongated mesh | 5/8 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
| 2” x 2” square mesh | 1-1/2 minus product |
| 3” x 3” square mesh | 2-1/4 minus product |
| 4” x 4” square mesh | 3-1/4 minus product |
Erosion Control Rock
- Water flow can do a lot of damage through erosion. Erosion control rock works great to stabilize slopes or around culverts to reduce erosion during heavy rains.
| Mesh Size | Product Size |
|---|---|
| 1/2 x 4” elongated mesh | 3/8 minus product |
| 3/4 x 4” elongated mesh | 1/2 minus product |
| 1” x 4” elongated mesh | 3/4 minus product |
| 1” x 1” square mesh | 3/4 minus product |
| 1-1/4 x 1-1/4 square mesh | 7/8 minus product |
| 1-1/2 x 1-1/2 square mesh | 1-1/8 minus product |
