DESIGNED FOR MULTIPLE TYPES OF MACHINES
Excavators
Skid Steers
Compact Loaders
Bucket tractor
GENERAL DESCRIPTION
Our Xtreme Duty Dump Trailer is designed for those who need to haul materials on their job site. It’s compatible with excavators, skid steers, compact loaders, and bucket tractors, ensuring versatile use. Greater efficiency means saving both time and transportation costs.
FEATURES
REINFORCED STEEL FLOOR & FRAMELESS DUMPING SYSTEM
SEE PHOTOS
- The floor of our dump trailer is engineered to withstand the demands of an excavator working directly inside it. Constructed from two laminated and plug-welded 5/16-inch steel plates, the floor provides a solid 5/8-inch thick steel surface, ensuring exceptional durability.
- Our trailer’s dumping system is both simple and robust. By opting for a frameless design, we've strategically allocated the steel to the floor rather than wasting it on a framework that would only support a thinner floor.
- The reinforced hitch tube extends all the way back to the trailer axle, creating a strong pivot point for efficient dumping. As always, our design philosophy is centered on performance and longevity—"Designed to Perform and Built to Last."
- Reinforced Steel Floor & Frameless Dumping System: Constructed with a 5/8-inch thick steel floor made from two laminated and plug-welded 5/16-inch plates, ensuring exceptional durability and strength without the need for a traditional framework.
TRAILER SUSPENSION
SEE PHOTOS
- When you're hauling thousands of pounds in the trailer, the suspension needs to be exceptionally robust. It must also prevent the trailer from leaning side to side on hilly terrain.
- Our design, with the hitch tube extending all the way back to the axle, allows us to position the suspension right at the front of the box. We've installed four heavy-duty 3" x 12" coils, creating a quad-coil design that absorbs shocks during loading and towing, ensuring a smoother and more stable experience.
- Robust Quad-Coil Suspension: Features four heavy-duty 3" x 12" coils positioned at the front of the box, creating a quad-coil design that absorbs shocks and enhances stability during loading and towing.
LOCKING SYSTEM
SEE PHOTOS
- The Xtreme Duty Dump Trailer features a barn door tailgate that is laser-cut and CNC-formed from a sturdy 5/16-inch thick plate. This barn door style tailgate swings open in one direction, providing easy access and efficient unloading.
- Barn Door Tailgate: Laser-cut and CNC-formed from 5/16-inch thick plate, the barn door tailgate swings open in one direction for easy access and efficient unloading.
DUAL WHEEL SYSTEM
SEE PHOTOS
- The new Xtreme Duty Dump Trailer 2.0 design now features a single axle with a dual wheel system, making it easier for compact equipment to handle and steer the trailer when heavily loaded. The single axle allows the trailer to pivot smoothly without damaging the ground, while the dual wheel system evenly distributes ground pressure for enhanced stability and reduced impact on the terrain.
- Dual Wheel System: The trailer is equipped with a dual wheel system, providing enhanced stability, better weight distribution, and reduced ground impact, especially under heavy loads.
HITCH TUBE
SEE PHOTOS
- Loading at a 90-degree angle offers distinct advantages, especially when space is limited in tight working conditions. The hitch tube on the Xtreme Duty Dump Trailer is designed with sufficient length, enabling you to position the trailer at a 90-degree angle to the excavator's blade. This setup allows the operator to use the blade as a backstop for the bucket during final cleanup, making the process more efficient.
- 90-Degree Loading Capability: The hitch tube is designed long enough to allow the trailer to be positioned at a 90-degree angle to the excavator's blade, enabling the blade to be used as a backstop for the bucket during final cleanup in tight spaces.
Xtreme Duty Dump Trailer
BUILD SPECIFICATIONS: XTREME DUTY DUMP TRAILER
| Component | Description |
|---|---|
| Floor Thickness | 5/8 inch (two laminated 5/16 steel plates plug welded together) |
| Trailer Sides | 5/16 steel plate (laser cut and CNC formed) |
| Hitch | Choice of ball or pintle |
| Suspension | Heavy Duty 12” Quad Coil |
| Trailer Axle | Single Axle (Dual Wheel) |
| Tires | 7.00 R16 |
| Tail Gate | Barn swing door with lock pin |
| Dumping Mechanism | Frameless design with reinforced hitch tube extending to axle for effective dumping |
| Pivot System | Reinforced hitch tube creating a strong pivot point for smooth dumping |
| Loading Capability | 90-degree loading with extended hitch tube for easy positioning and maneuverability |
DeSite WARRANTY POLICY
3 year structural warranty.
read more
We provide all parts at no cost to the customer during the warranty period.
Customer is responsible for installing the part and covering the shipping cost.
Customers are responsible for inspection before and after use.
We do not warrant against abuse or lack of maintenance.
DESITE WARRANTY POLICY
BUY WITH CONFIDENCE
WE OFFER THREE DIFFERENT SIZES OF DUMP TRAILERS

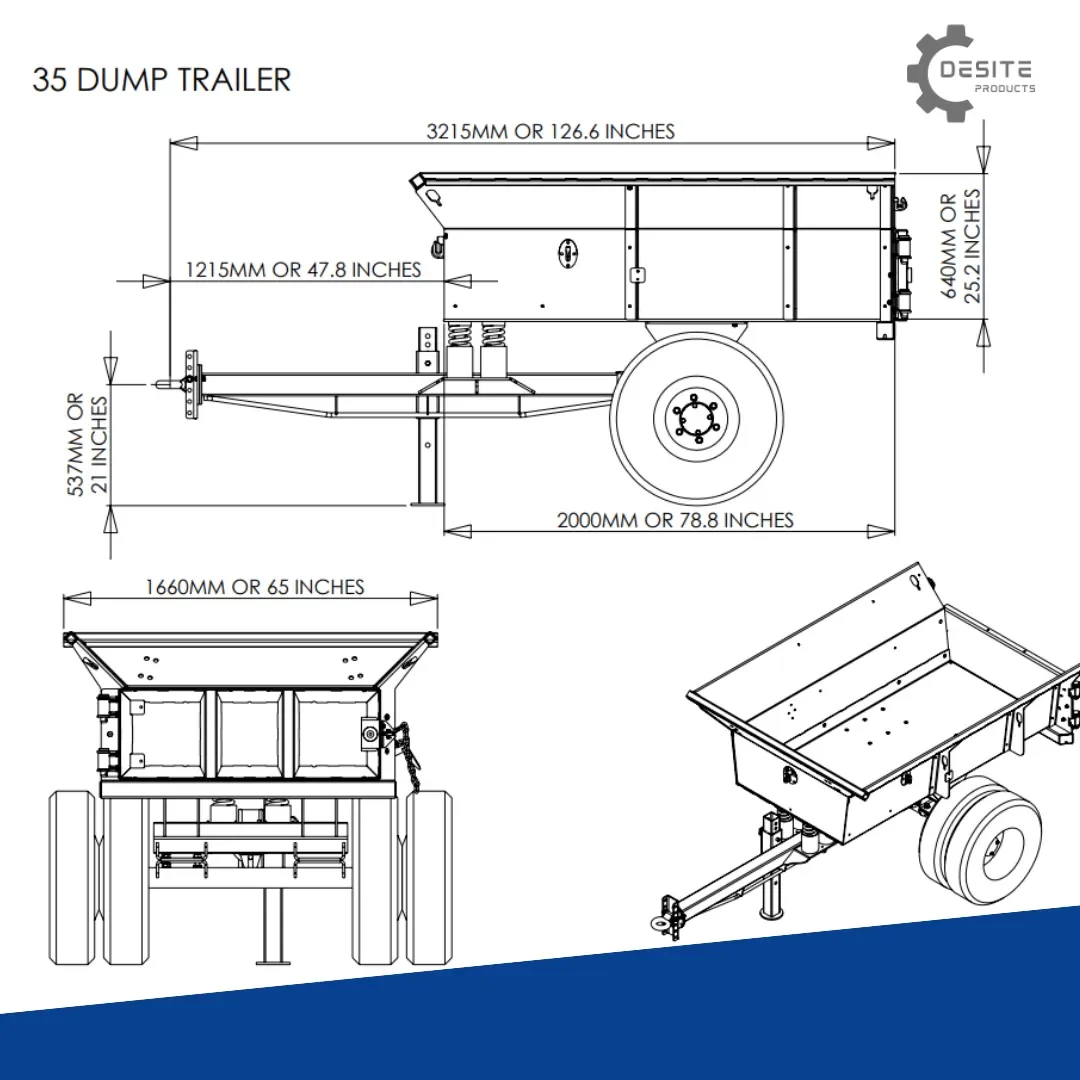

35 DUMP TRAILER
WITH A CAPACITY OF 3.5 YARDS

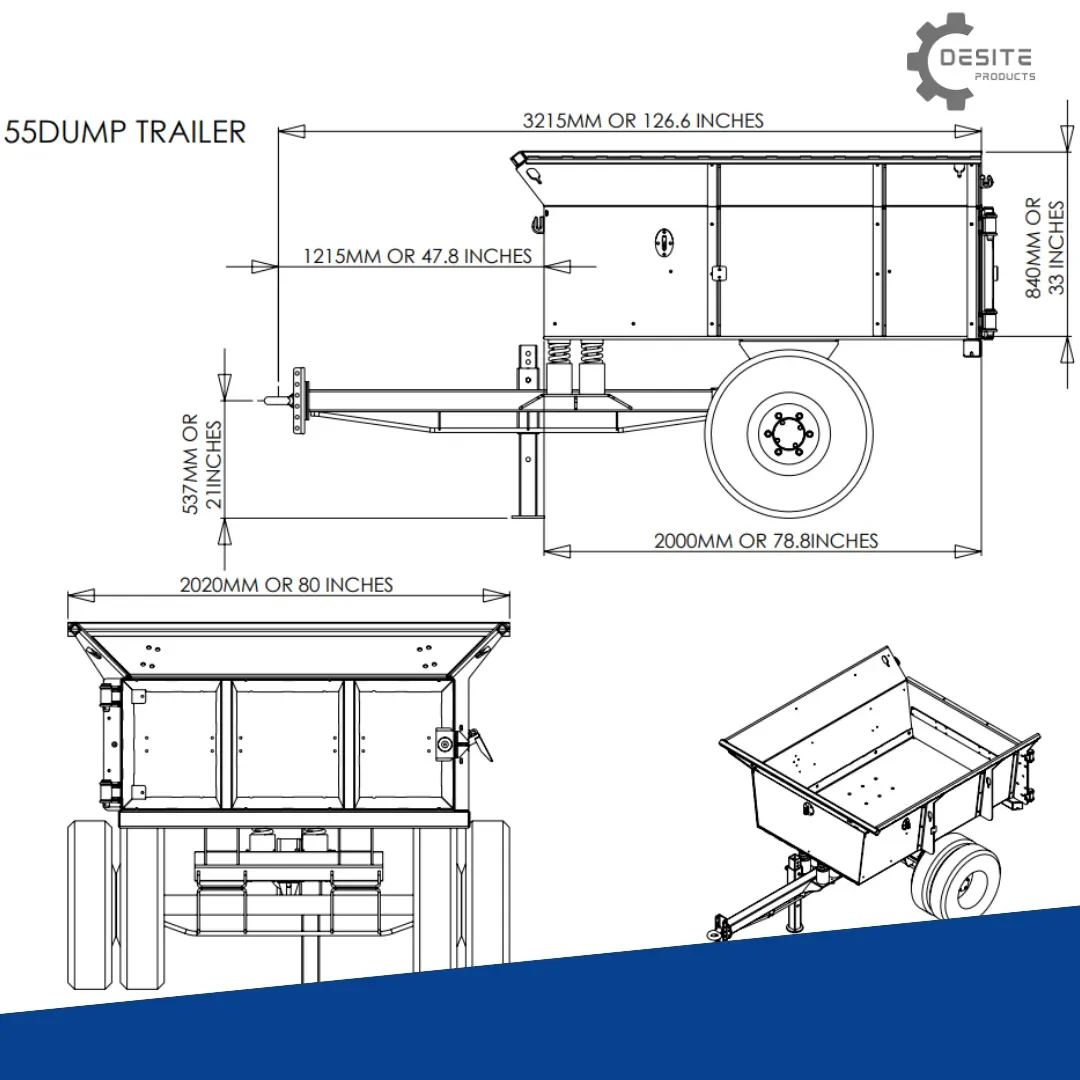

55 DUMP TRAILER
WITH A CAPACITY OF 5.5 YARDS

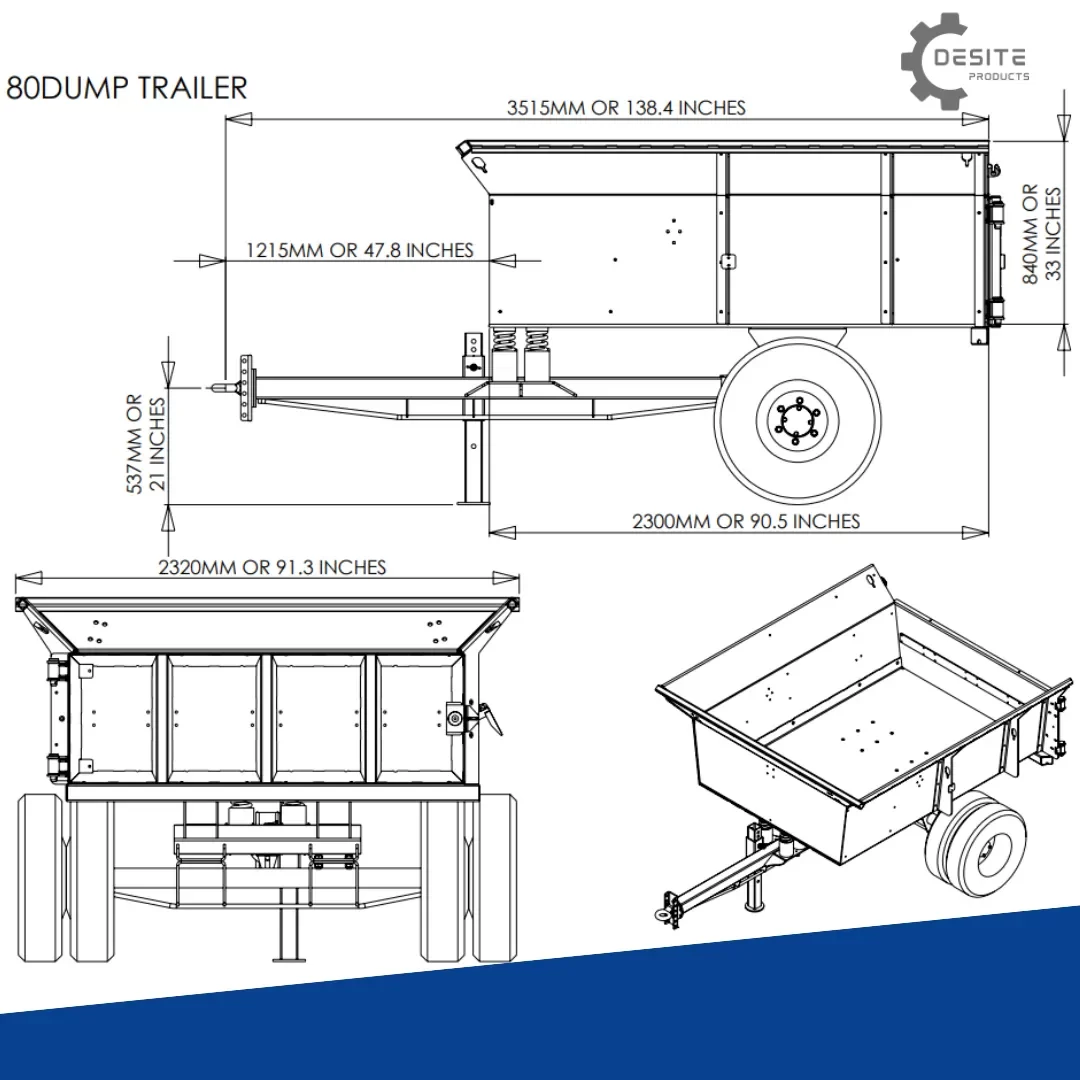

80 DUMP TRAILER
WITH A CAPACITY OF 8 YARDS
